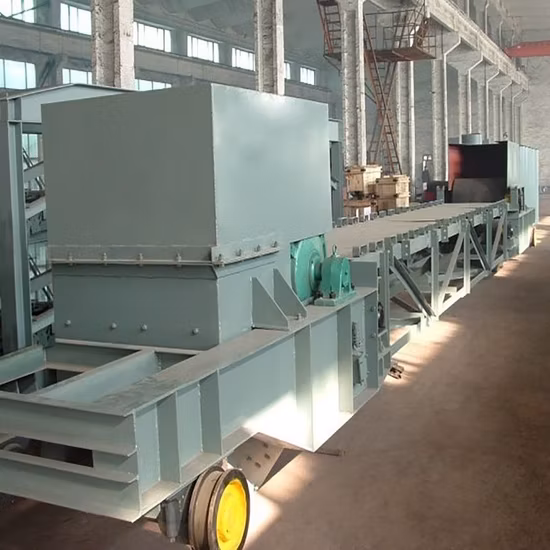

Transportation System Reversible Shuttle Belt Conveyor

Transportation System Reversible Shuttle Belt Conveyor

Transportation system reversible shuttle belt conveyor IntroductionShuttle conveyors are designed with traveling shuttle
SHARE

Description

Basic Info
Model NO. KN
Warranty 1 Year
Color Multi Color
Customized Customized
Condition New
Model Kn
Belt Width 500/650/800/1000/1200/1400mm
Length 6-60m(PS:3 Meters for Each Interval)
Belt Speed 1.0/1.25/1.6/2.0/2.5m/S
Walking Speed 0.12-0.40m/S
Capacity 104-1683m3/H
Track Distance 900-2050mm
Bearing Brand Can Be Domestic or Importe Lyc, Hrb , Wzs, FAG, NSK, SKF etc.
Motor Brand Can Be Domestic or Imported Yutong, ABB, Siemens, Weg etc;
Gearbox Brand Can Be Domestic or Importe Tailong, Sew etc.
Transport Package Standard Shipping Package
Trademark PK
Origin Henan, China (Mainland)
HS Code 8428330000
Production Capacity 500 Sets/ Month
Product Description
Transportation system reversible shuttle belt conveyor
IntroductionShuttle conveyors are designed with traveling shuttle functionality. They are moved forward or backward to vary the loading or discharge points, or both. Can be used for building a stacking pile in-line and continuous, or for feeding multiple fixed discharge points. The conveyor will move along a track and convey material in both directions. It can be widely used in agriculture, power plant, raw material stocking, metallurgy industry, etc.Advantages and Features1.Reversible belt direction and there is no restrict to which end of the conveyor material can discharge from.2.Can discharge continuously in a long distance.3.The stationary material feed chute allows for processed material to be directed to one central location.4.Also can be controlled from a remote location to reduce labor cost greatly.5.Only heavy-duty, high quality drive components are used for our reversing shuttle conveyors.6.All of the moving components, from the trolley wheels to the drive motors, have been engineered to ensure continued functionality and reliability.7.Adopt high grade steel pulleys shafts for the pulley.Technical data:
Belt width(mm)Length(m)Belt speed(m/s)/Track model(kg/m)Walking speed(m/s)Track distance(mm)L×W×H(m)
5006~60≤2.5/180.2949003265×1130×1080
65010603265×1290×1080
80014403265×1670×1210
10006~3916403420×1870×1240
42~603690×1870×1240
3920×1870×1240
4000×1870×1240
12006~3018503400×2080×1400
33~603670×2080×1400
3900×2080×1400
4000×2080×1400
14006~3020503390×2280×1500
33~603660×2280×1500
3890×2280×1500
4000×2280×1500

Selection Conditions
♦Material to be processed: _____♦Material is sticky or not: ____ (Ps. Yes or No)
♦Handling capacity (Ps. It means the total♦Working environment is indoor or outdoor
material capacity feeding from the inlet): _____t/h or indoor and outdoor: ______________
♦Bulk Density: _____t/m3♦Working environment temperature: ______ ºC
♦Material temperature: _____ºC;♦Max. granule size of the feeding material: _____mm
♦water content:____%♦Center distance between the head and tail pulley: ___m
♦Material is corrosive or not: ____ (Ps. Yes or No)♦Walking distance: ______m
